title Server Management
description Install, configure, and manage MCP servers in McpMux. Supports stdio and HTTP transports with encrypted credential storage, environment variable overrides, and OAuth authentication.

MCP servers provide the tools, resources, and prompts that AI clients use through McpMux. Each server connects to an external service (GitHub, Slack, a database, etc.) or provides local capabilities (filesystem access, browser automation).

Installing Servers

From the Registry

The fastest way to add a server is through the McpMux server registry:

  1. Browse or search for the server you need
  2. Click Install — if you have McpMux open, it installs directly via deep link
  3. If the server requires credentials, the configuration dialog opens automatically
  4. Fill in the required fields and click Save

You can also browse the registry inside the McpMux desktop app under Discover Servers.

Manual Installation

For servers not in the registry, you can add them manually in McpMux by providing the server definition JSON directly.

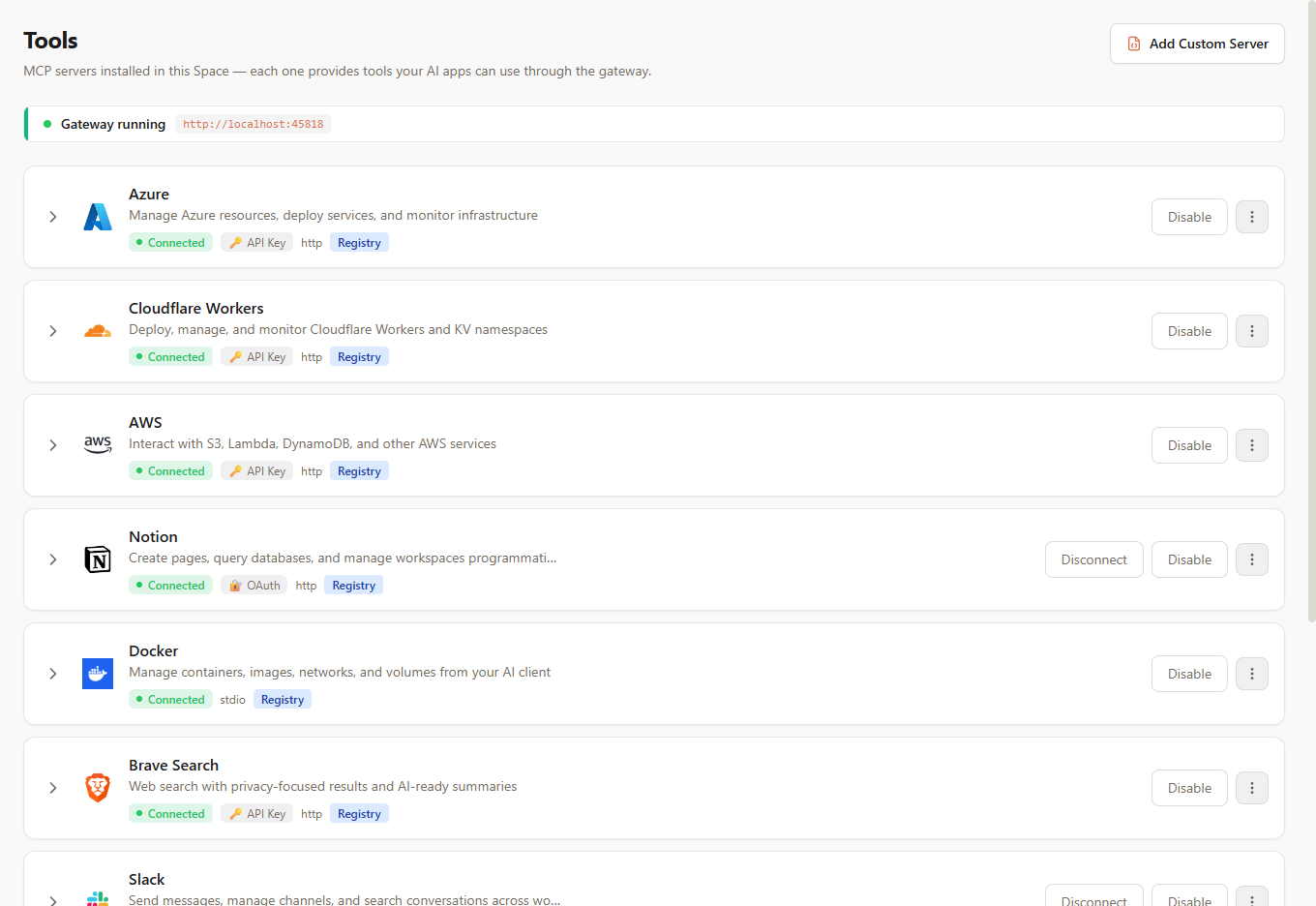

My Servers page — installed servers with connection status, auth type, and transport badges

Transport Types

MCP servers communicate using one of two transport types:

stdio (Local)

The server runs as a local process on your machine. McpMux launches the command and communicates over stdin/stdout.

Common commands:

  • npx -y @modelcontextprotocol/server-filesystem — Node.js servers
  • uvx mcp-server-sqlite — Python servers
  • docker run -i --rm ghcr.io/github/github-mcp-server — Docker containers

Best for: Servers that need local filesystem access, are written in different languages, or require specific runtime environments.

HTTP (Remote)

The server is hosted remotely and accessible via an HTTP endpoint. McpMux connects using the Streamable HTTP MCP transport.

Example endpoints:

  • https://mcp.atlassian.com/v1/mcp — Atlassian (Jira & Confluence)
  • https://docs.mcp.cloudflare.com/mcp — Cloudflare Docs

Best for: Cloud-hosted servers, SaaS integrations, and servers that require no local installation.

Server Configuration

Each installed server can be configured per-Space with:

Input Values

Credentials and settings required by the server. These are defined by the server definition and include:

  • API keys and tokens — stored encrypted, never in plaintext
  • URLs — service endpoints
  • Feature flags — enable/disable specific behaviors
  • Paths — file or directory locations

Environment Variable Overrides

Override or add environment variables passed to stdio servers:

GITHUB_API_URL=https://github.example.com/api/v3
LOG_LEVEL=debug

Additional Arguments (stdio only)

Extra command-line arguments appended to the server's command:

--workspace /path/to/project
--verbose

HTTP Headers (HTTP only)

Custom headers sent with every request to HTTP servers:

Authorization: Bearer sk-xxxx
X-Custom-Header: value

Enable and Disable

Each installed server has an enabled/disabled toggle:

  • Enabled — the gateway connects to this server and exposes its tools
  • Disabled — the server is installed but not running; no connection is maintained

Disabling a server immediately disconnects it and removes its tools from connected clients.

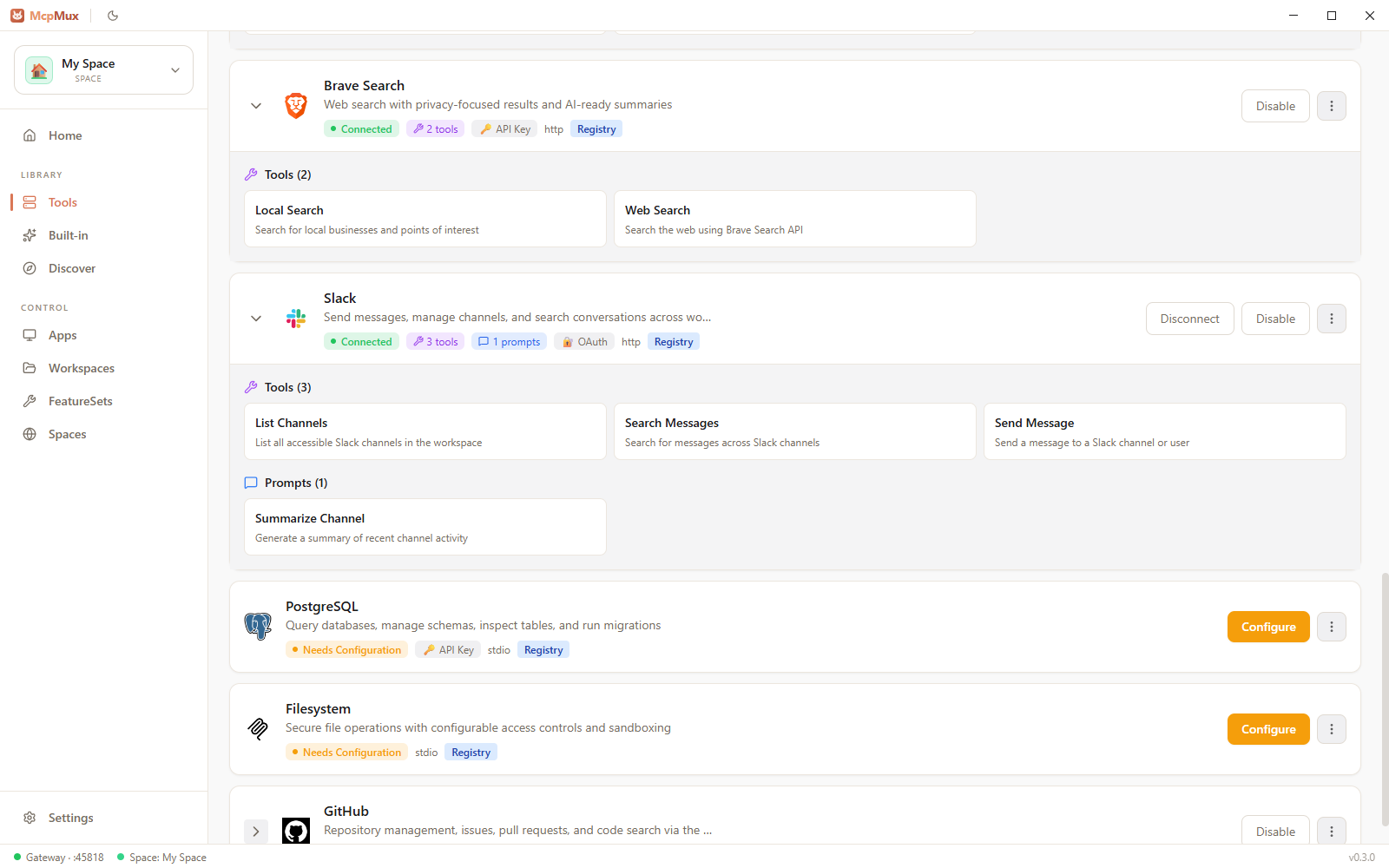

Expanded server view showing available tools and prompts for each connected server

Connection Status

The My Servers page shows real-time connection status for each server:

Status Meaning
Connecting MCP handshake in progress
Connected Server is online and serving requests
Disconnected Server is installed but not connected
Error Connection failed — check server logs

Server Logs

Each server has its own log stream accessible from the My Servers page. Logs show:

  • Connection and disconnection events
  • MCP protocol messages
  • Error details and stack traces
  • Tool invocations and responses

Use logs to troubleshoot connection issues or understand what requests are being made.

OAuth-Authenticated Servers

Some HTTP servers use OAuth 2.1 + PKCE for authentication. McpMux handles the entire OAuth flow:

  1. When you enable an OAuth server, McpMux initiates the authorization flow
  2. A browser window opens for you to log in and grant permissions
  3. Tokens are stored encrypted and refreshed automatically
  4. If a token expires, McpMux refreshes it transparently — no manual intervention

Next Steps
